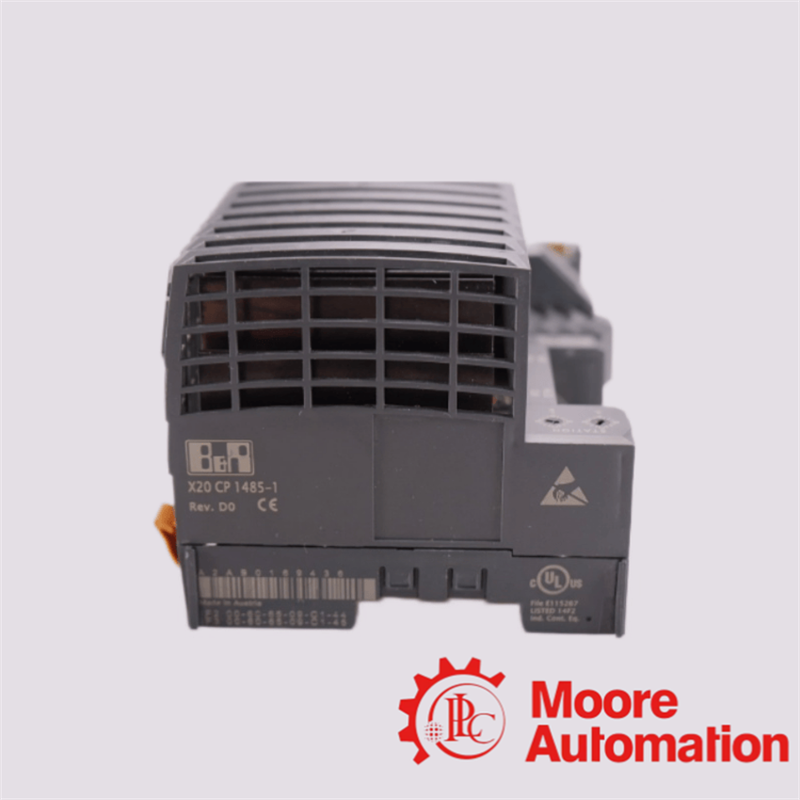

X20CP1485-1 B&R Powerful CPU For The X20 System

Name: X20CP1485-1 B&R Powerful CPU For The X20 System
Brand: MOORE AUTOMATION LIMITED
SKU: X20CP1485-1
Availability: InStock

Dettagli del prodotto:

Luogo di origine:	L'Austria
Marca:	B&R
Certificazione:	CO.CQ
Numero di modello:	X20CP1485-1

Informazione dettagliata

Luogo di origine:

L'Austria

Marca:

B&R

Certificazione:

CO.CQ

Numero di modello:

X20CP1485-1

Comunicazione integrata:

1 POWERLINK V1/V2, 1 Ethernet, 1 USB

Slot per scheda di memoria:

1x slot per CompactFlash

Fattore di forma/raffreddamento:

Senza ventola, ultra sottile (1 slot di espansione)

FPU:

Integrato

Tempo di ciclo:

400 µs

Evidenziare:

High Light

Evidenziare:

Compact Powerhouse

Sub-Millisecond Control

Fanless Maintenance-Free

Informazioni commerciali

Quantità di ordine minimo:

Prezzo:

inquiries

Imballaggi particolari:

nuovo e originale con sigillo di fabbrica

Tempi di consegna:

2-3 giorni lavorativi

Termini di pagamento:

T/T

Capacità di alimentazione:

Richiede

Descrizione del prodotto

X20CP1485-1 B&R Powerful CPU For The X20 System

The B&R X20CP1485-1 is a high-performance Intel Celeron 400 MHz industrial CPU designed for the X20 system, engineered to deliver ultra-fast computation and real-time execution in a space-saving, fanless form factor. It solves critical bottlenecks for complex automation systems by executing high-speed floating-point operations and processing vast streams of data without system jitter. This powerhouse controller is perfectly suited for multi-axis synchronized robotics, complex CNC applications, and high-speed packaging systems that demand deterministic sub-millisecond cycle times.

Engineer's Note

"When migrating an application from the standard X20CP1484 model over to the high-performance X20CP1485-1, keep in mind that your code execution speeds will scale down significantly due to the 400 MHz clock speed and tighter 400 µs cycle capability. Always verify that any time-dependent PID loop filters or communication timeouts are adjusted in B&R Automation Studio to account for the faster execution. Also, ensure you use a high-grade industrial CompactFlash card to match the read/write speeds required by the upgraded processor."

Frequently Asked Questions

Q: What is the primary difference between the X20CP1485-1 and the wider X20CP3485-1?

A: They share identical core Celeron 400 computing performance and memory. The only differences are physical: the X20CP1485-1 features a much narrower, space-saving width because it provides one modular interface expansion slot instead of three.

Q: Can I use this CPU module if my plant operates in highly humid and dust-heavy conditions?

A: Yes, the module features a totally fanless architecture that completely isolates the internal circuitry from mechanical wear and cooling path blockages caused by airborne industrial dust, oil mist, or particulate matter. [1, 2]

Q: How does the X20CP1485-1 preserve its remanent data during unexpected power cuts?

A: The unit houses 1 MB of high-speed SRAM paired with a standard replaceable lithium battery. This ensures critical machine states, encoder positions, and system recipe variables remain safely buffered for at least 3 years without main system power.

Project Case Study

"This exact B&R X20CP1485-1 model was successfully deployed for a high-volume robotic sorting and distribution hub overhaul in 2025. Running continuous real-time multi-axis position routines over native POWERLINK, the controller maintained a flawless 100% availability rate, managing intense data collection arrays without a single system overload."
